The Fuels we have today? you many need to re-tune you'r older engines to suit to days modern fuels.

"We do all of our tuning 'in house' on Land & Sea system Chassis Dyno Rolling Road"

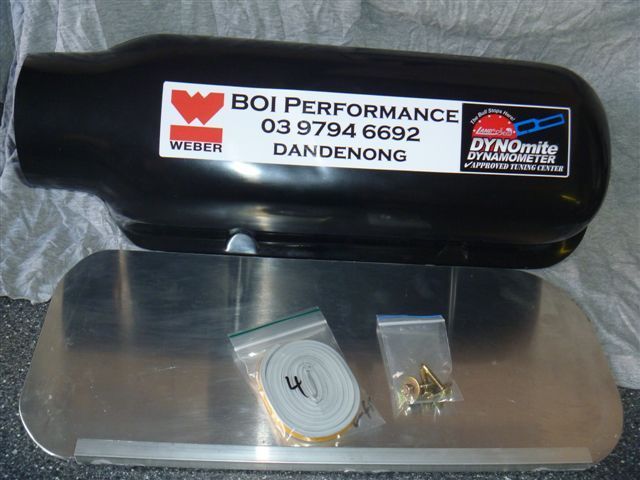

BOI Performance has just released a new range of custom Cold Air Box's Intake to suit Weber DCOE, Dellorto, SU or EFI throttle bodies.

We have been developing our range of product based on our customer needs, as can be seen with the back to back Dyno testing with our own Chassis Dyno.

All Air boxes are made in High Quality Fiber Glass with a Aluminum Air Craft Quality 4mm base plate (to resist cracking) complete with full seal & 5mm Chassis bolts.

Our fibre glass parts are hand laid with Vinylester Resin as it is stronger, more flexible, better chemical resistant and higher temperature tolerance than cheaper Polyester Resins.

The air intakes start at 100mm (4") OD, this will support most engines from 4Cyl to 6Cyl engines. Some engines require larger intakes, of 5" or even 6", depending on the application and space available.

As can be seen on the Dyno sheets, it improves range of torque from 2500 to 6500RPM.

This also substantially reduces air intake temps by ducting intake to outside of the engine bay for further power gains. Provides a useful reduction of induction noise. (Both on the road and for Track Days).

4" Air filter-Cone type (Internal to air duct) $85.00

1 pair of 4" Flanges- for Radiator support to inner gaurd $55.00, the face ring $35.00

total $90.00 as a set

4" Flange/ Radiator support / inner guard to air intake

Aud $55.00 each

Racing Short Slimline or long Multi Fit Pod Air Filter Small 3" 3.5" 4"

from $60.00

4" Pod Filter $85.00 Each

"Pod to Air box" or to flange to radiator support pod filter

In Black, Red or Blue

A$85.00 each

Cold Air Box Intake's
WEBER (Dellorto)

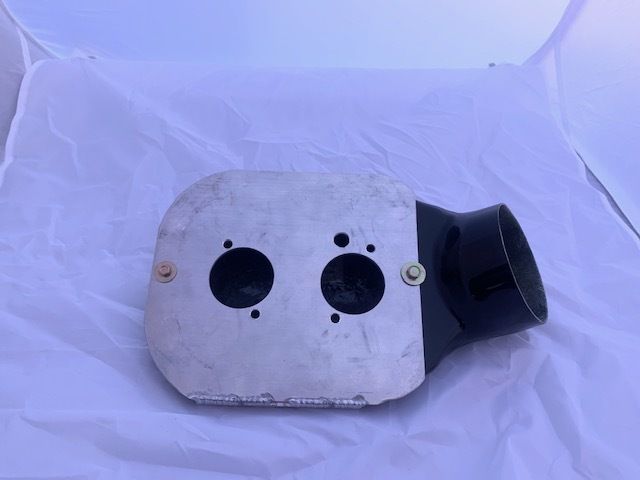

for Single DCOE Aud $580.00
Air box wil suit Left or Right handed setup

(Base plate machining from $85.00)

220mmL,190mm wide, 105mm Depthnose 45mm OD 4"

"New Molded"

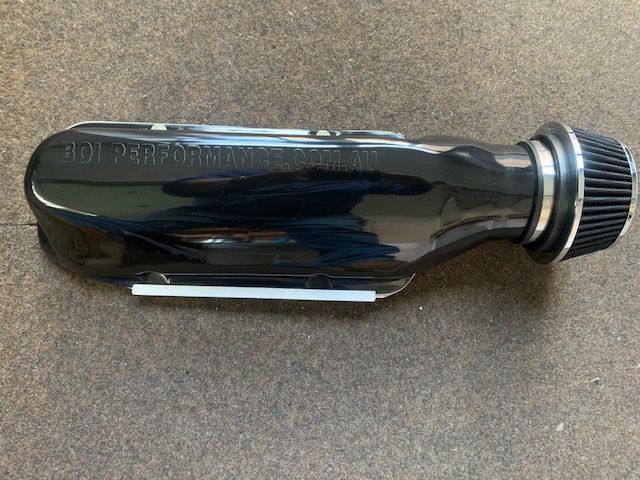

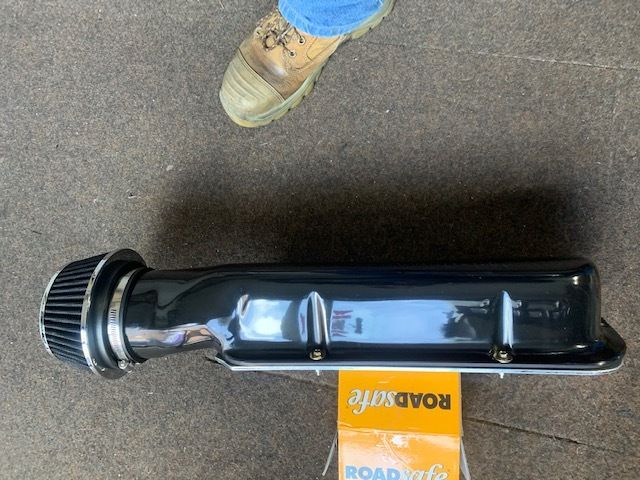

MG "B" DCOE Weber,DHAL Dellorto Cold Air Box
From Aud $580.00
Cold ducting & Pod filter Aud $160.00

(Base plate machining from $85.00)

MGB Complete kit includes:
Air Box, Base Plate (with all machining), brass Vent crank breather, 4" cold ducting, 4" Pod filter, flanges to suit radiator support
Aud $850.00

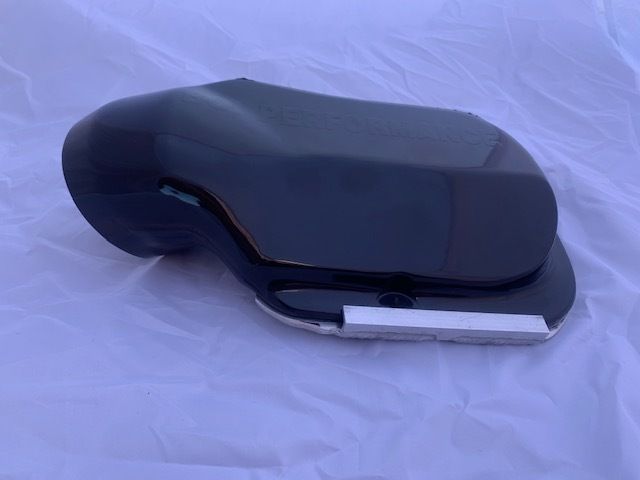

"New Ajustable"
Cold air box, Low cover @ 60mm H x 180 mm W x from Single to twins 360mm to 750 mm long, plus nose can turn off-set in or out by 60mm
(can turn right or left to order)

440mmL,190mm wide, 60mm Depthnose 45mm OD 4"

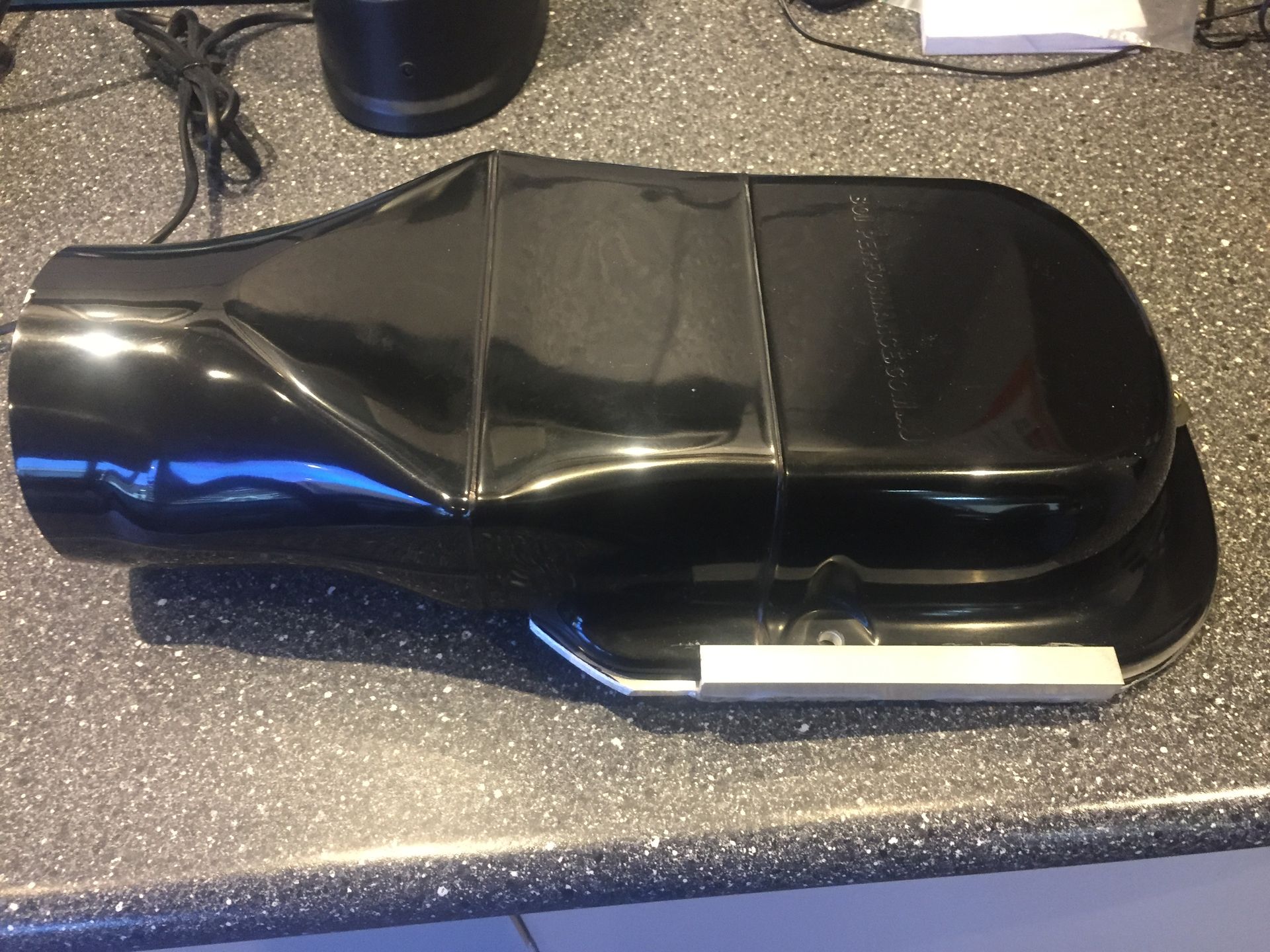

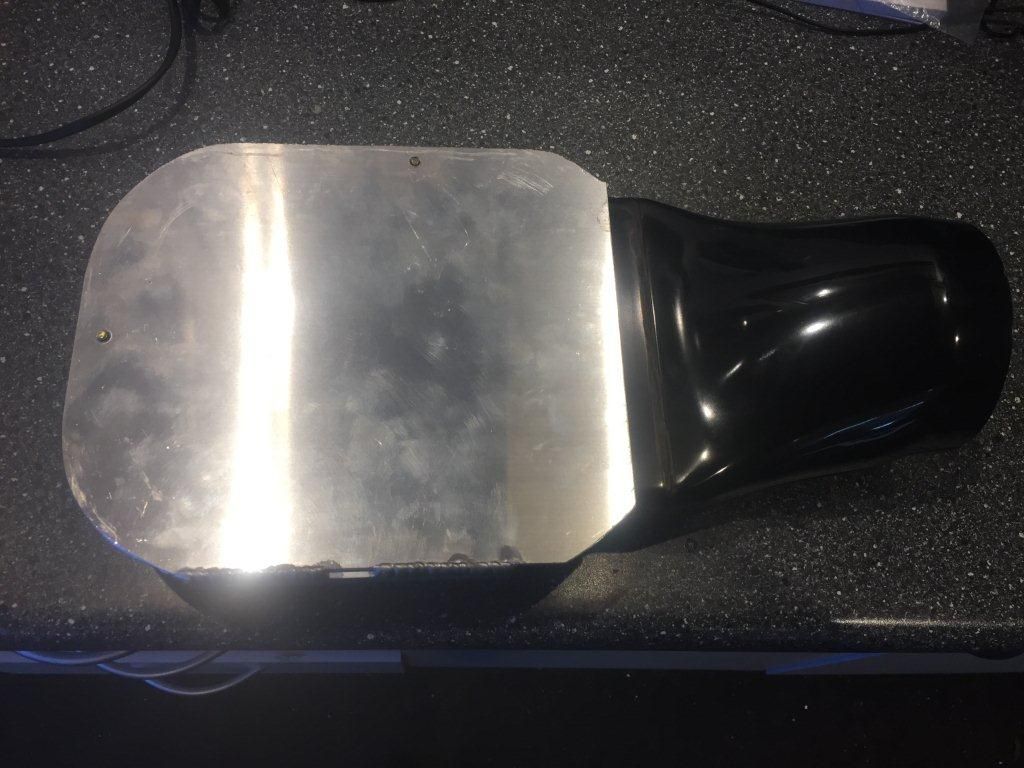

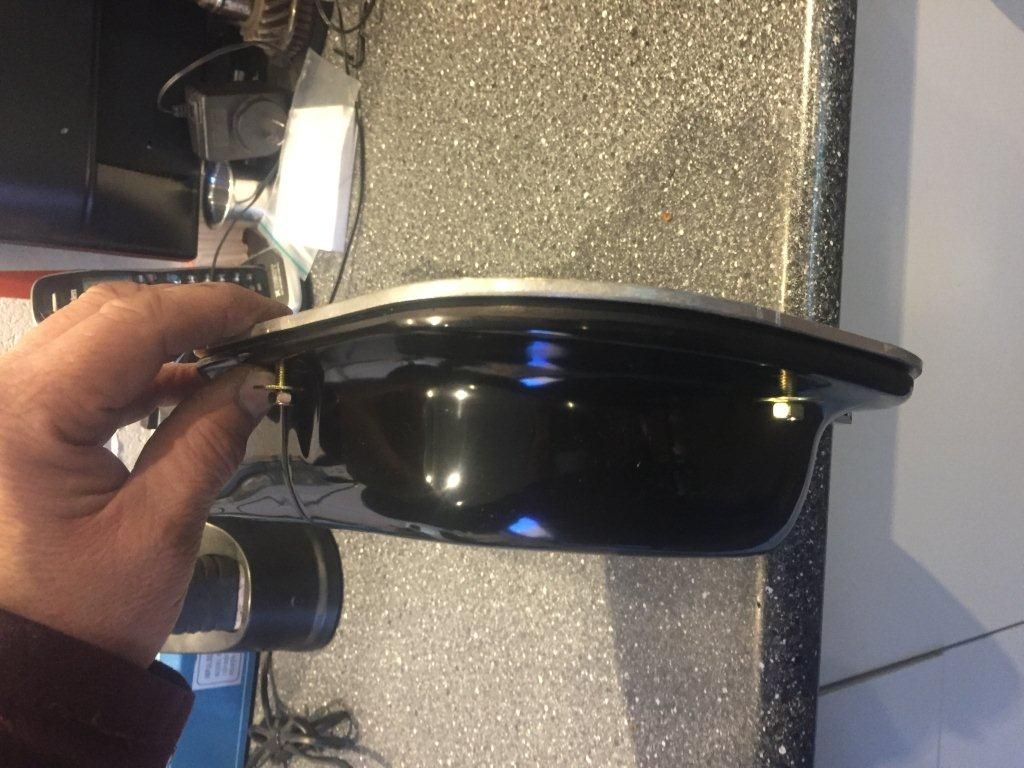

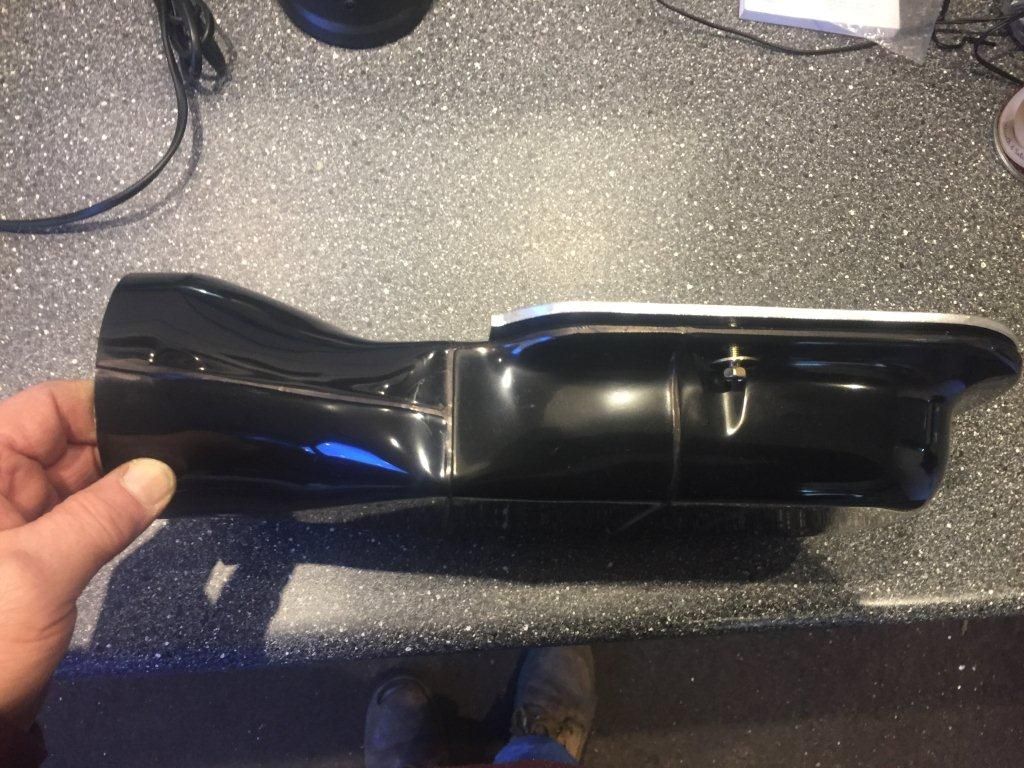

Small 190mm L, 220W 63mm deth internal 55mm Base plate 4mm made of Duralum

These are made to order from Aud $600.00

440mmL,190mm wide, 105mm Depth nose 45mm OD 4"

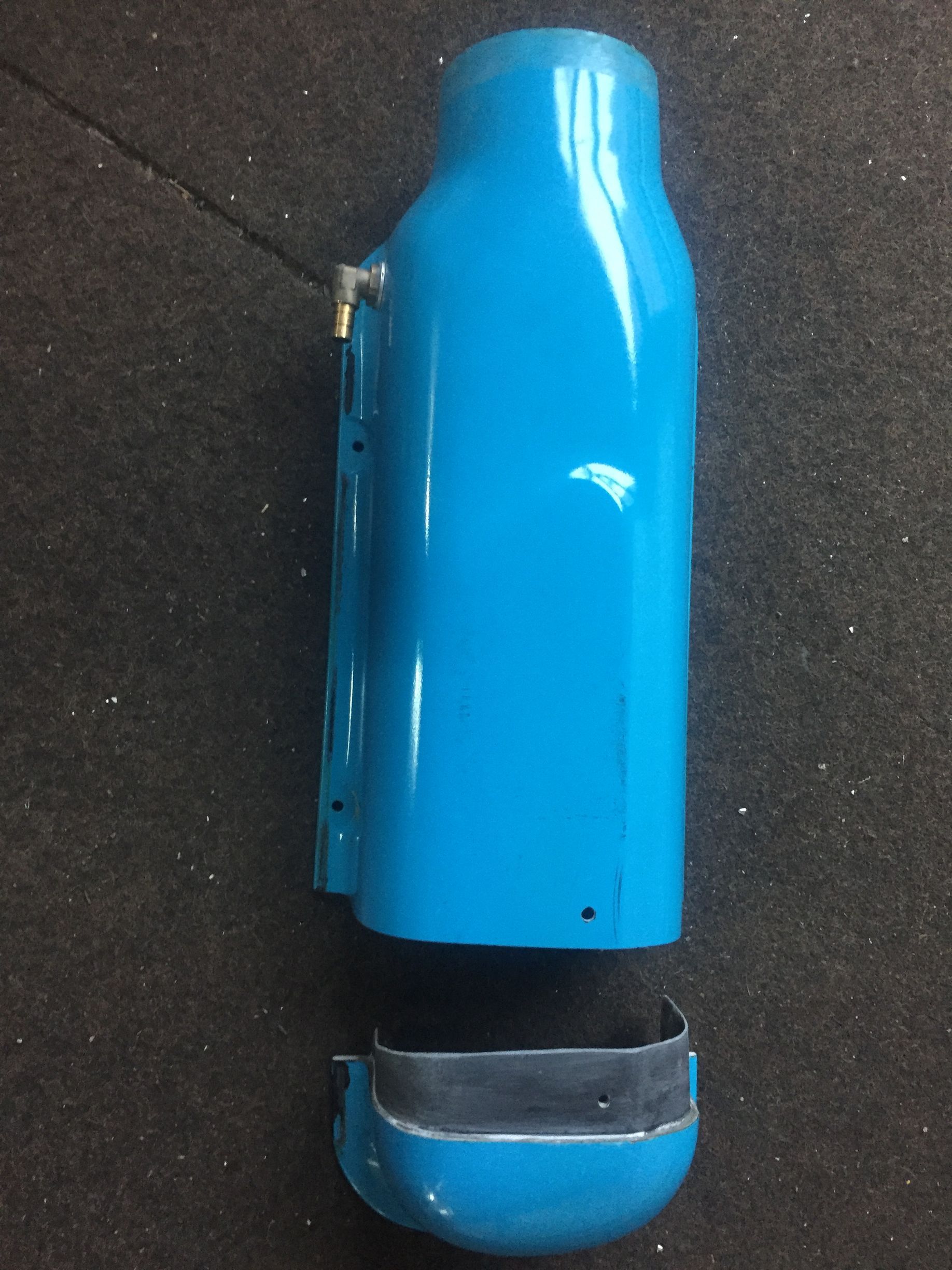

Cold Air Box IntakeWEBER (Dellorto) 4 cylinder 2 x DCOE (DHLA)
$600.00

440mmL,190mm wide, 105mm Depth nose 45mm OD 4"

Cold Air Box IntakeWEBER (Dellorto) 4 cylinder 2 x DCOE (DHLA)
Split rear section to fit over tight enging bay with up 60mm ram tubes
$780.00

Cold Air Box IntakeWEBER (Dellorto) 4 cylinder 2 x DCOE (DHLA)

Split rear section to fit over tight enging bay with up 60mm ram tubes

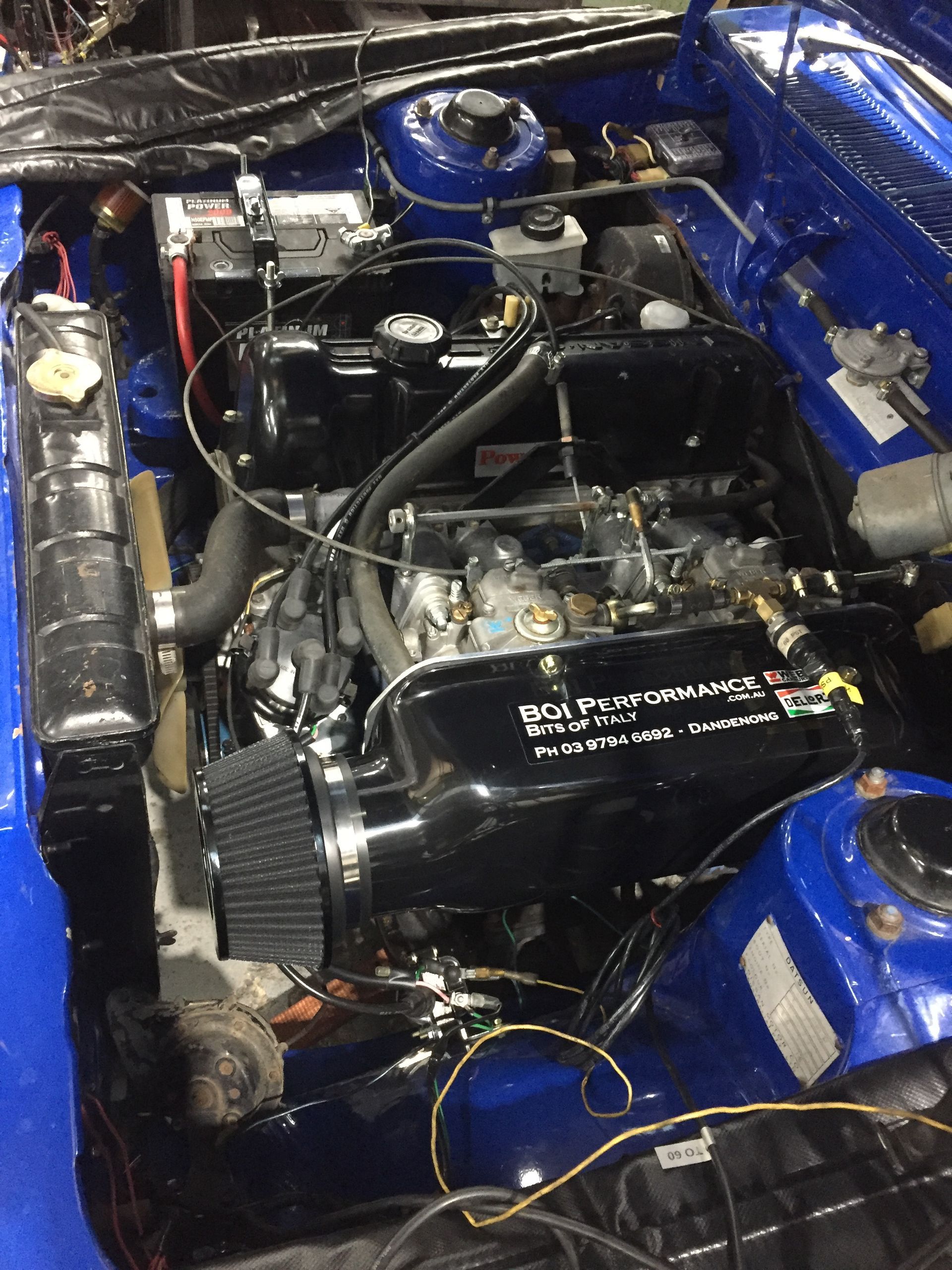

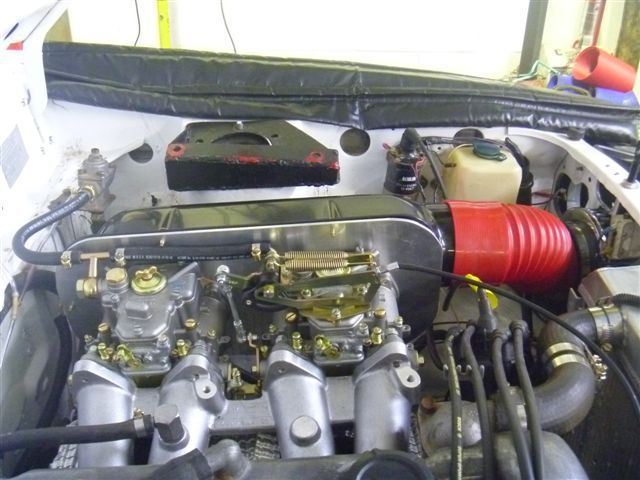

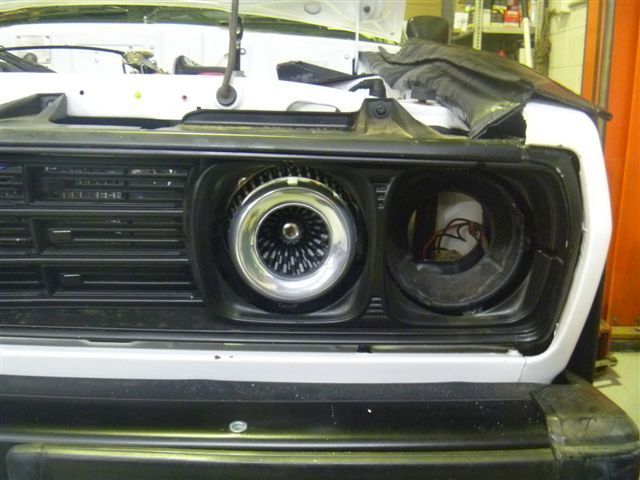

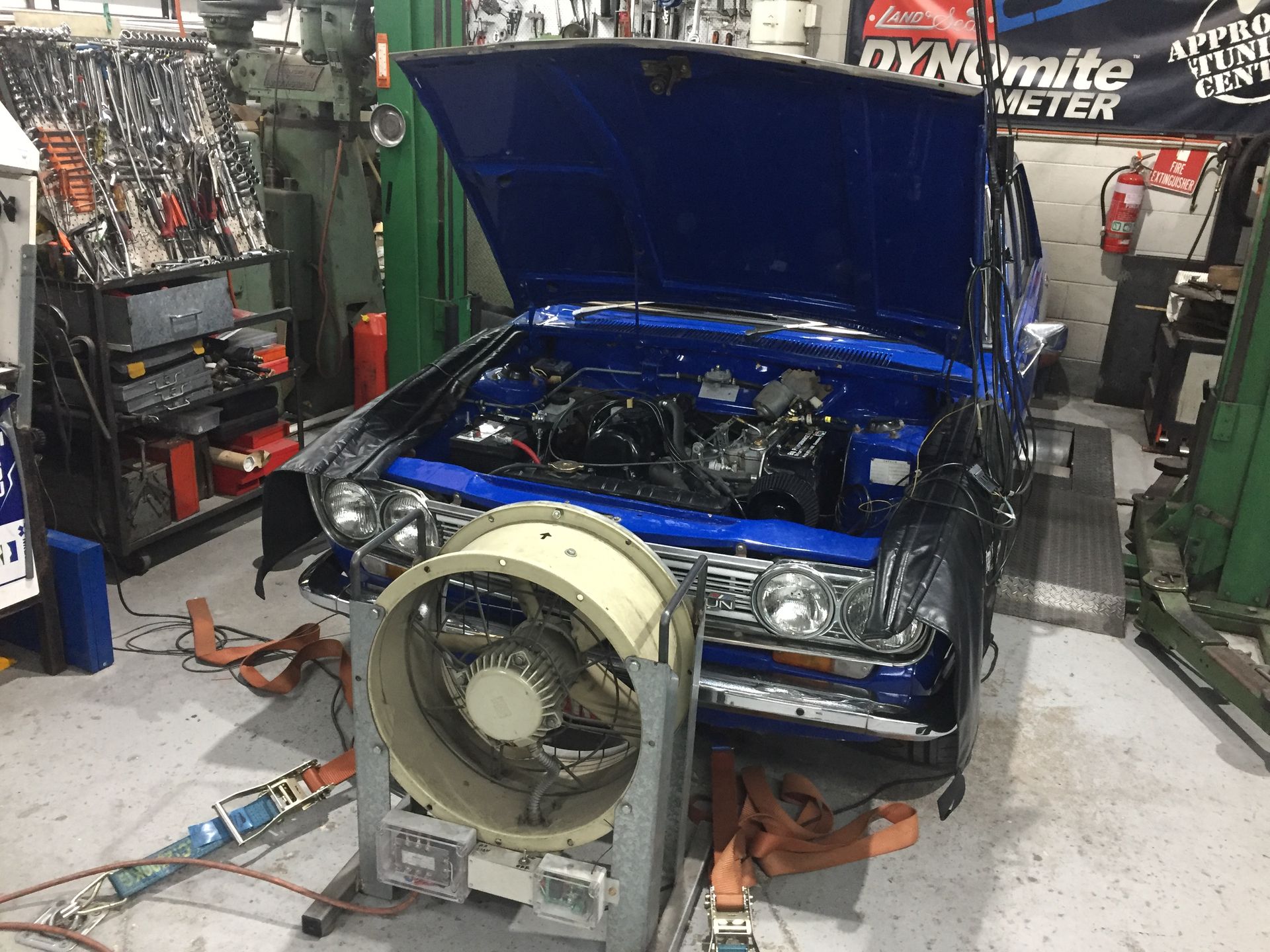

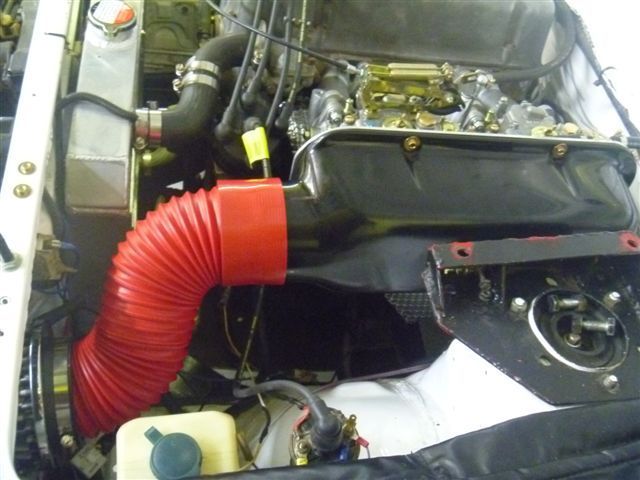

Datsun 1600 (fitted with L20 rally prepared, engine breather to Air Box for road use)

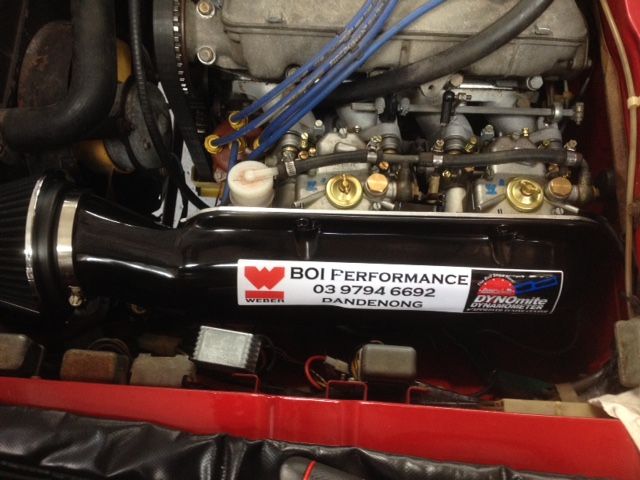

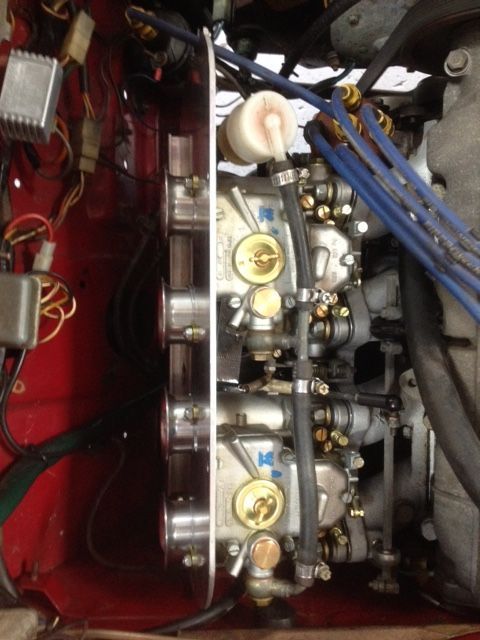

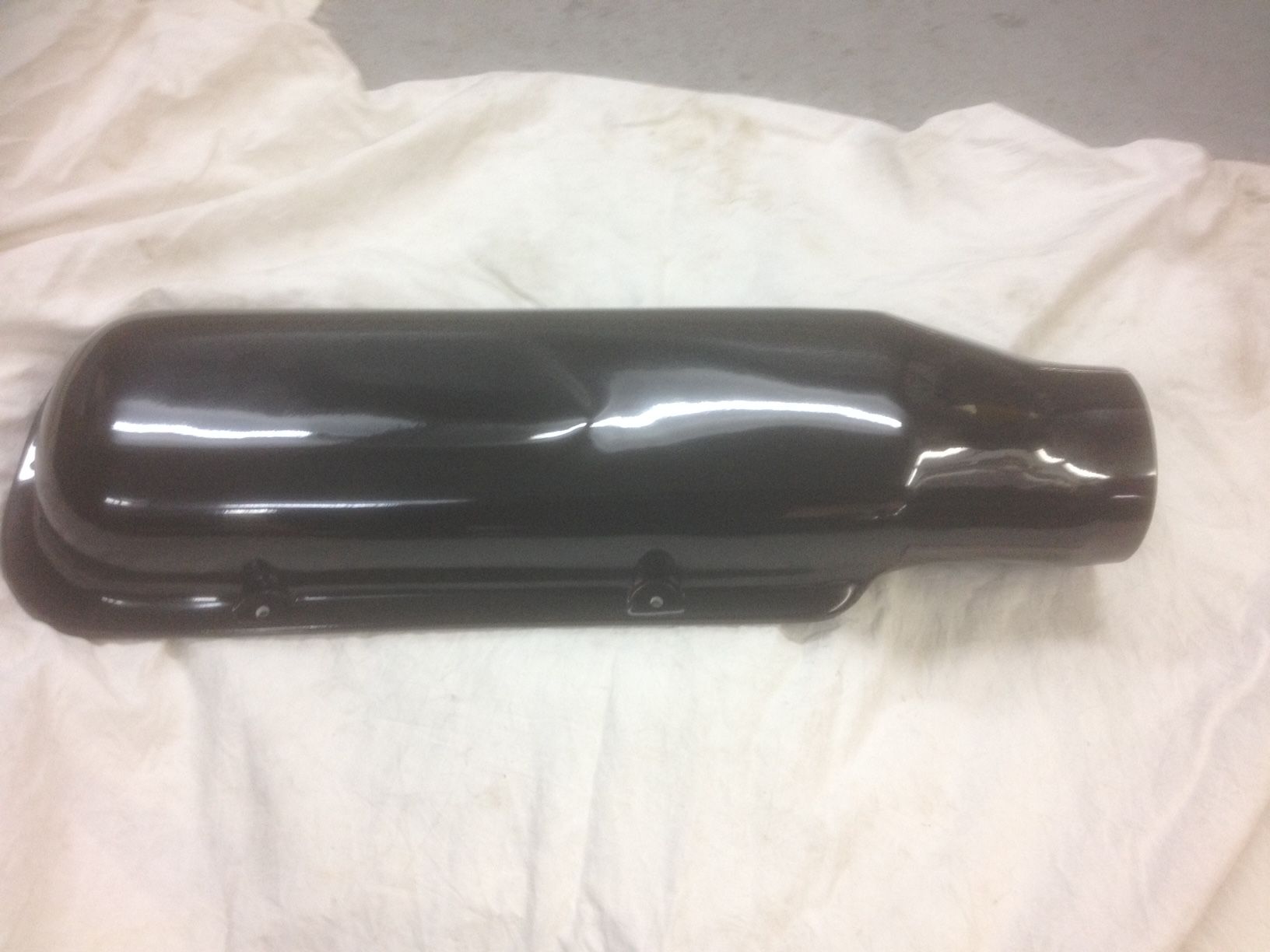

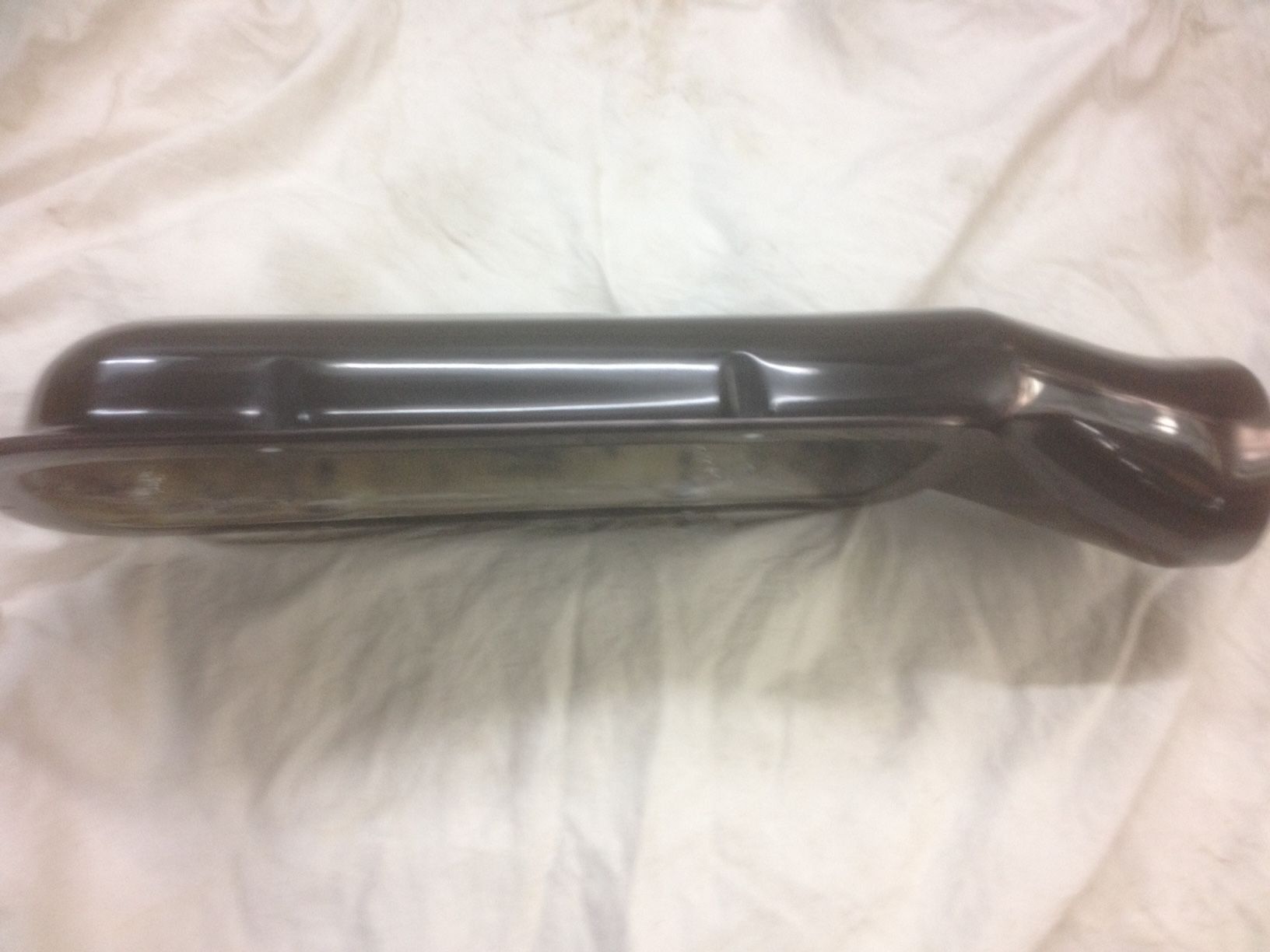

Air Box to suit twin Weber DCOE Aud $600.00

440mmL,190mm wide, 75mm Depth nose 45mm OD 4"

**NEW 75mm Left or Right Side-draft or down-draft** (Fiat 124,131, Ford Escort 2.0 OHC)

440mmL,190mm wide, 75mm Depth nose 45mm OD 4"

(380mmL,190mm wide, 75mm Depth nose 45mm OD 4" to suit Fiat 124 Spyder $650.00)

New Fiat 124 coupe/131 Twin 45 Webers on cold air box & Pod filter
KIt A$580.00 plus fitting (LYNX, Fiatorque & PBS Monifold R/hand drive set up)

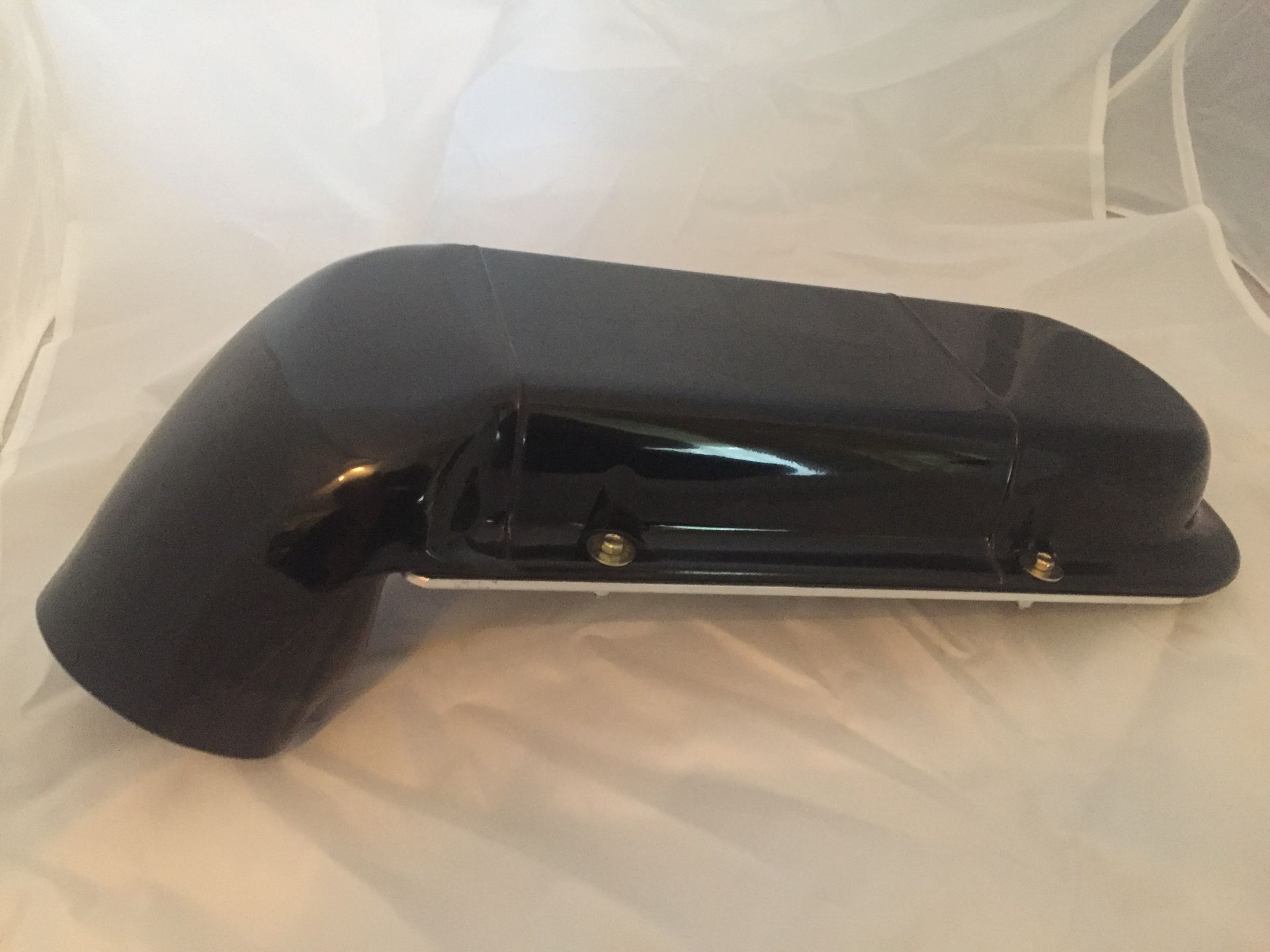

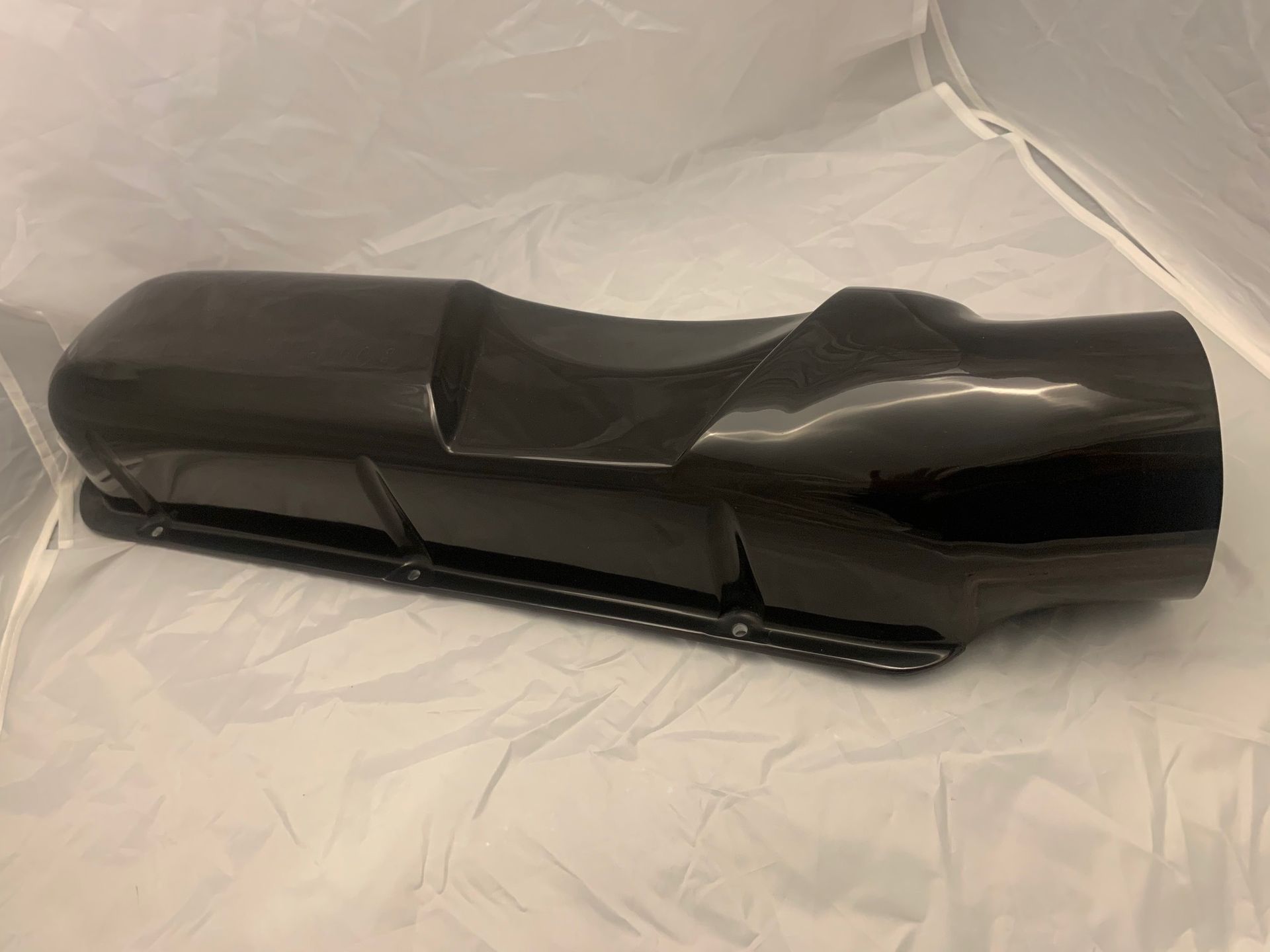

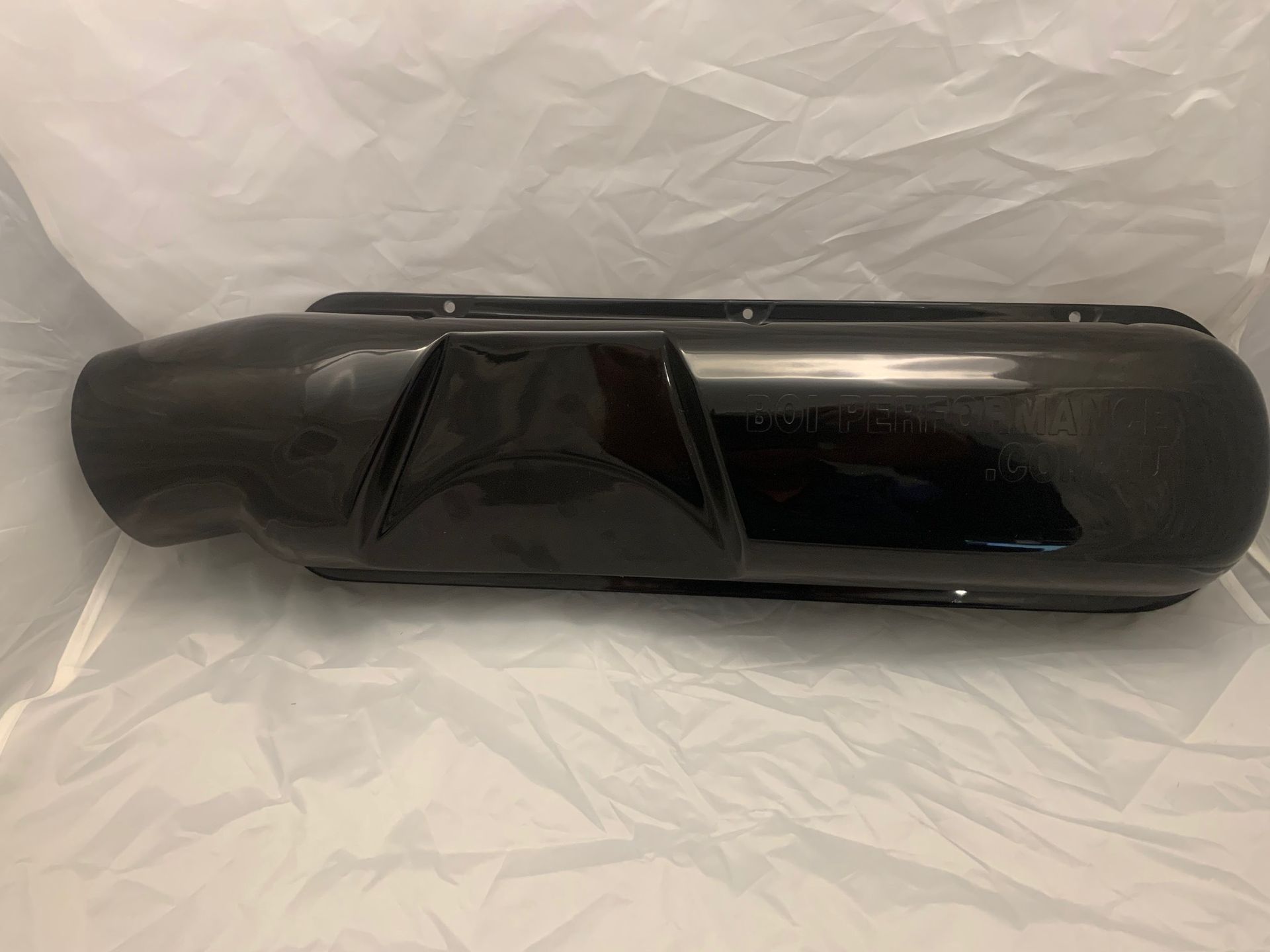

BOI Performance has Finaly made a new Cold Air Box Fiat 124 coupe spyder
To suit Fiat 124 Sedan special TC,124 Coupe BC & CC, 124 Spyder from 124 BS 1800 to late CS 2L ,124 SCA Weber 40-44 IDF Dellorto 40-44 DRLA (will also fit Alquia Manifold 40-44 DCNF manifolds, 131 1600,1800 & 2L TC engine with Factory manifold, and after market manifolds. you can fit crank breather back in to base plate, to comply with emmissions.

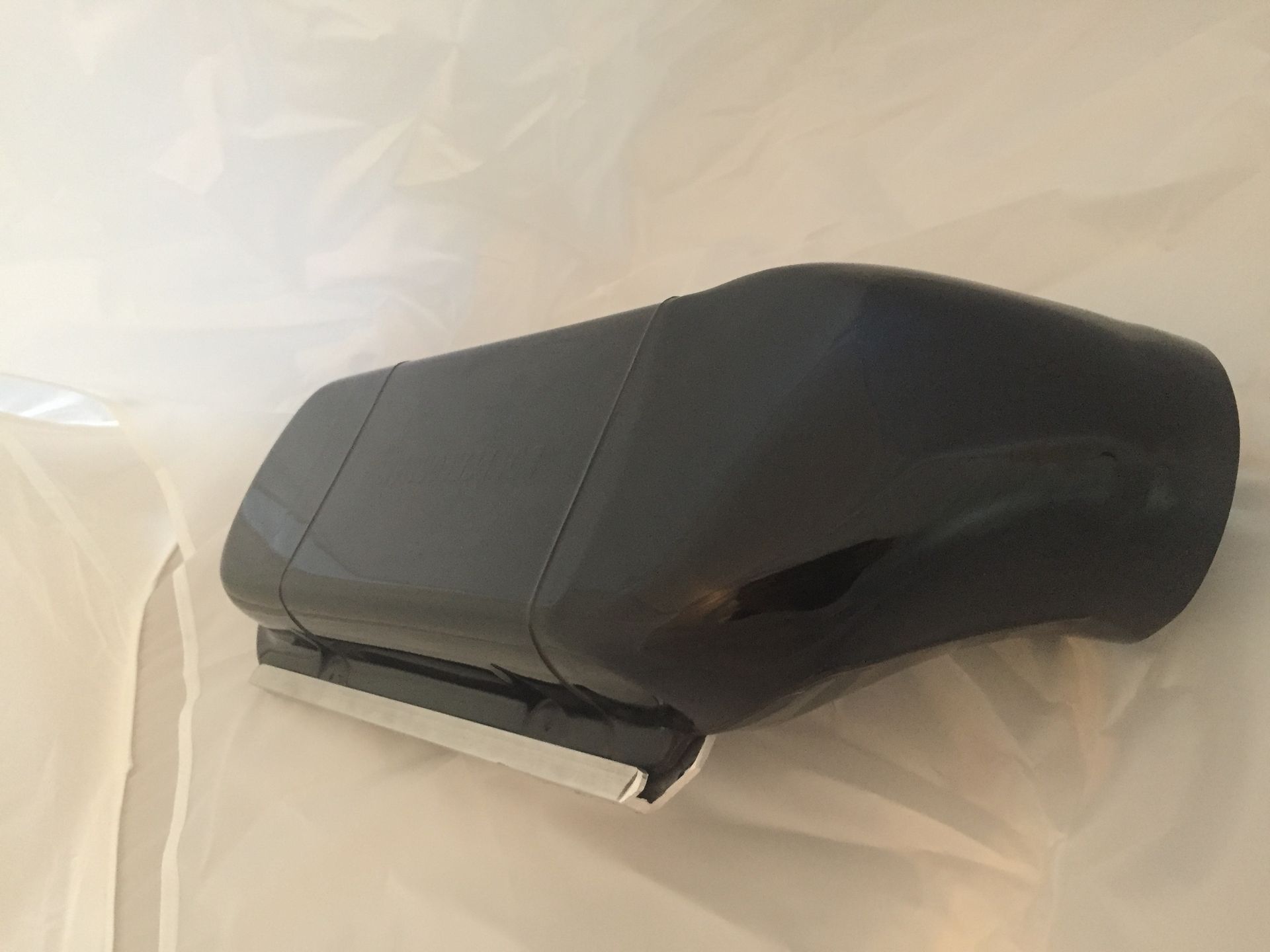

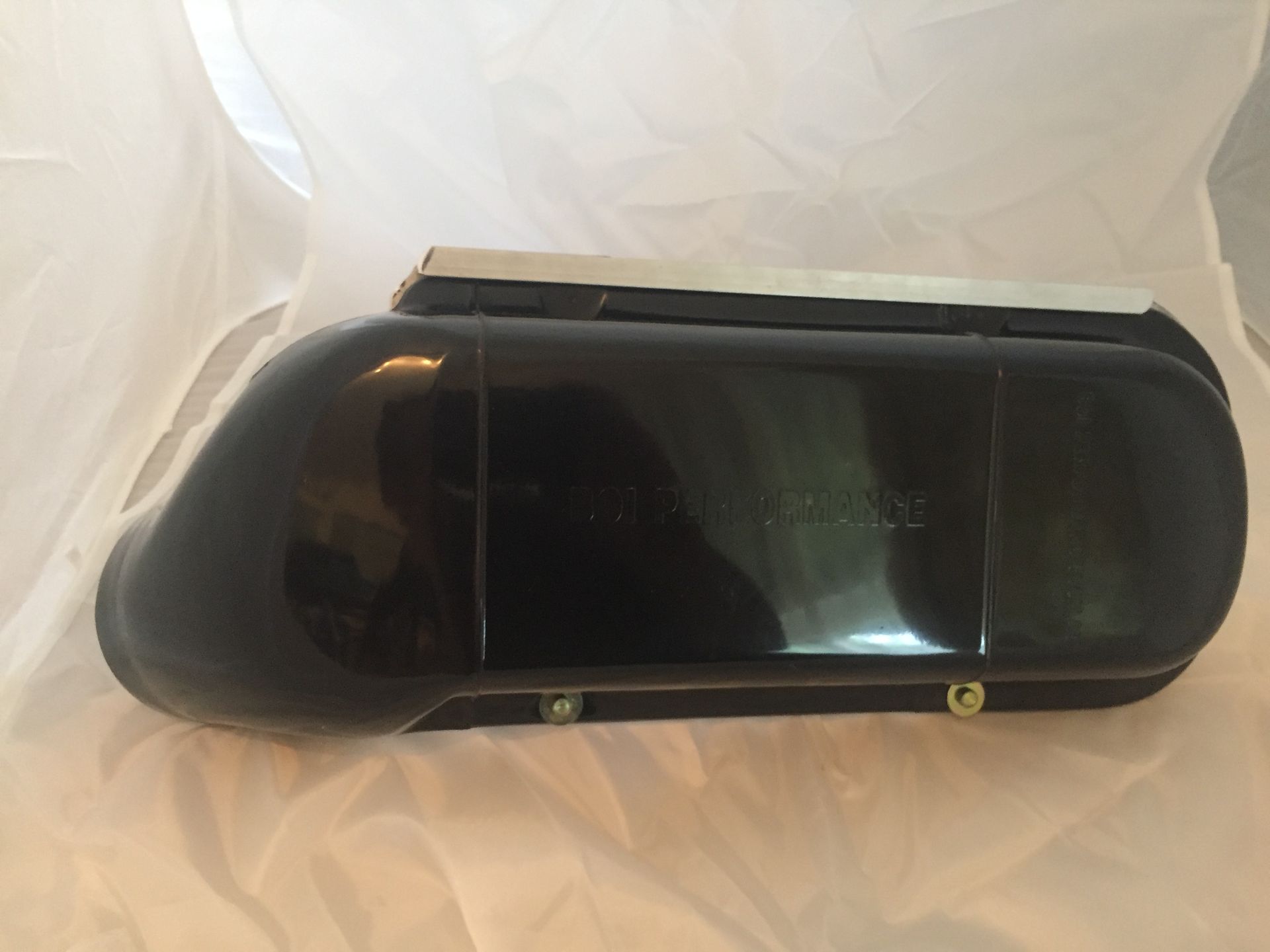

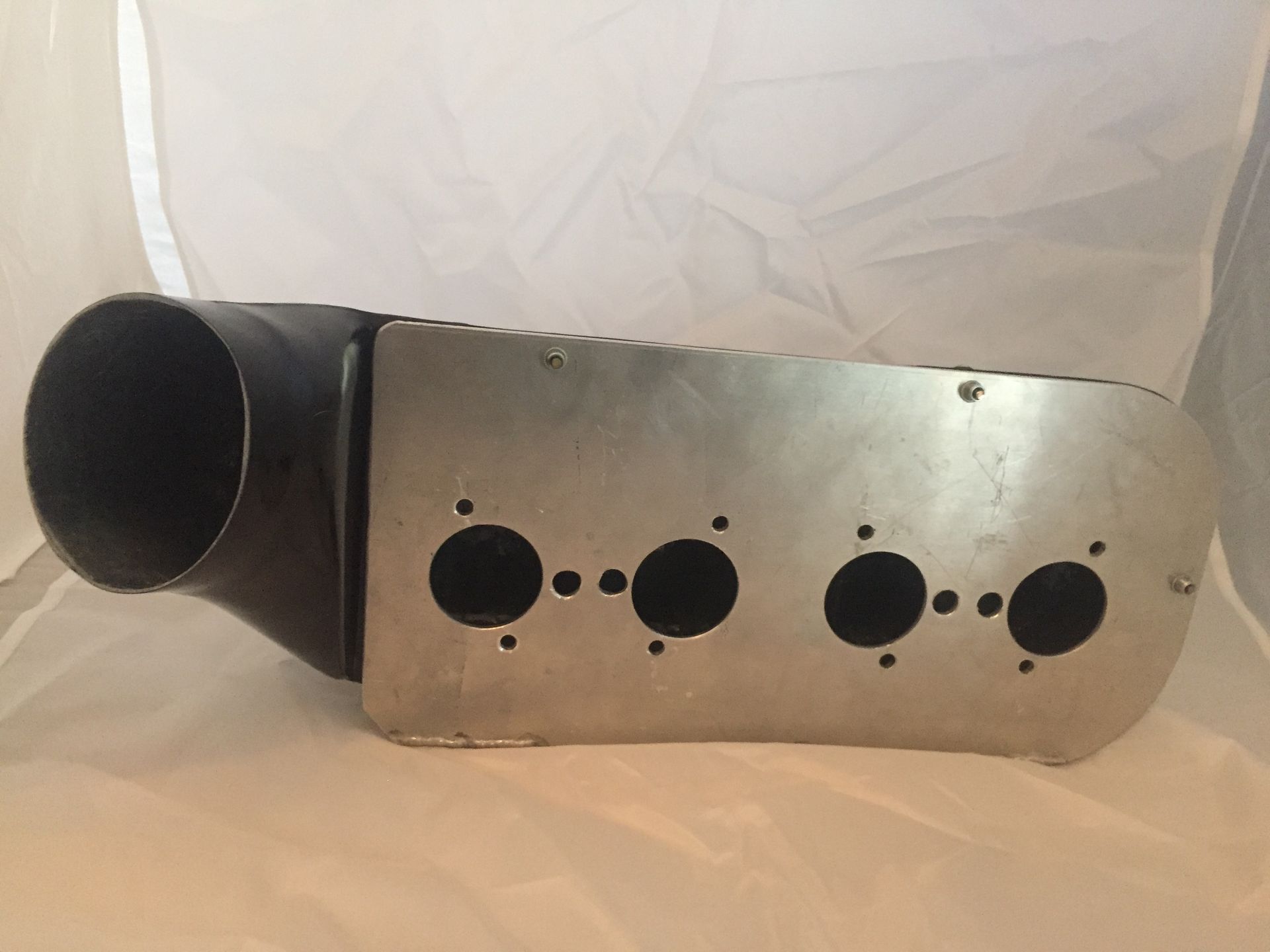

**Note this cold air box will fit RHD & LHD cars**

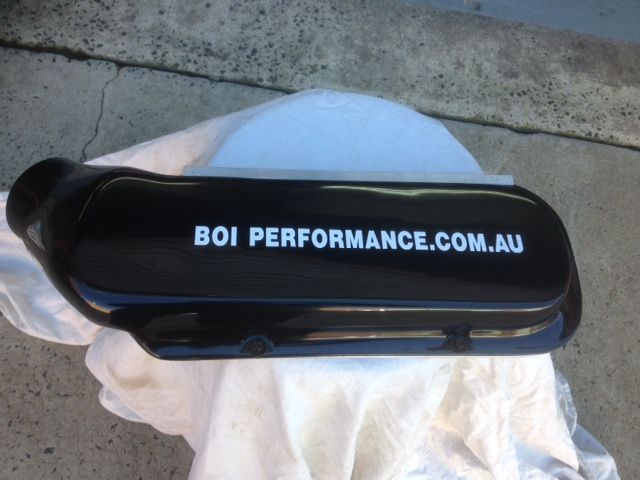

(390mm L,190mm wide, 60 mm, Depth nose 100 mm OD 4" (102mm) to suit Fiat 124 Spyder A$650.00 with out maching,

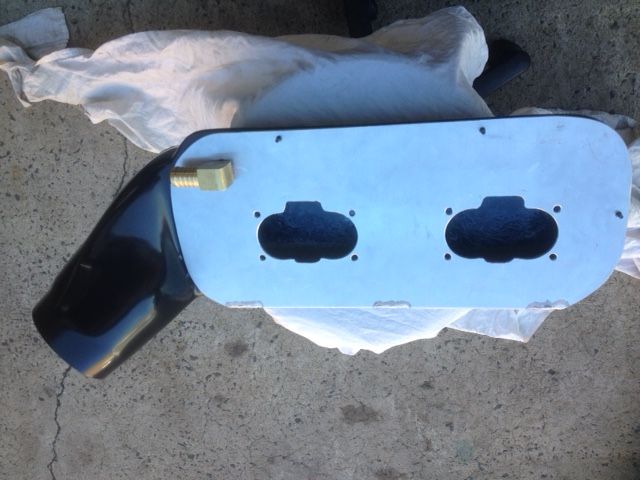

Extra for maching of base plae extra A$180.00)

(As can bee seen final fitting on Fiat 124 Spyder 1800 1978 low early bonet / Hood fitted with 2L fitted with 2 x 40 IDF with short ramr tube base plate) **This will not fit under boonet with 124 AC or AS**

Fiat X19 Twin 40DCNF Webers

Cold Air Box Intake

"New molded"

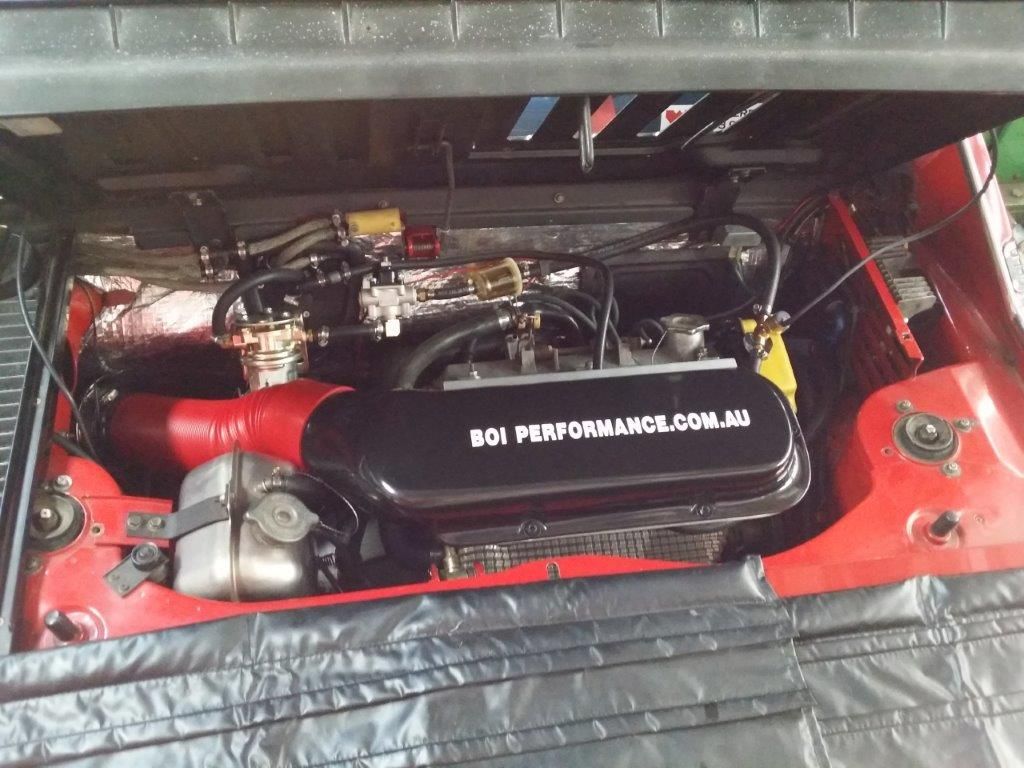

Fiat X19 1300 or 1500 Cold Air Box Intake

**Note this cold air box will fit RHD & LHD cars**

Twin 40DCNF Webers Kit from Aud $720.00. Ducting & Pod filter Aud $170.00

2 x Chrome DCNF air filter 45mm V/S Cold Air box with 4" ducted hose & 6" x 4" Pod filter with Cold air @ 19 Deg's V/S hot Air in engine by up to 85+ Deg's

440mm L,190mm wide, 75mm Depthnose 45mm OD 4"

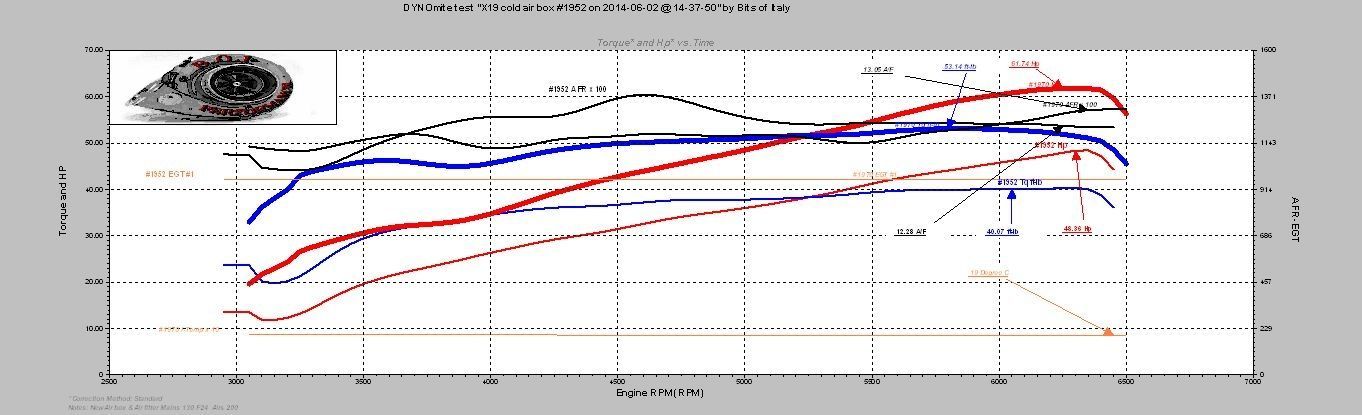

This is the gain from the cold air box for Fiat X19 1300 this engine twin 40 DCNF, Cams, Headers, Stock head & pistons

you can see the real gains with back to back testing

This is the gain from the cold air box for Fiat X19 1300 this engine twin 40 DCNF, Cams, Headers, Stock head & pistons

you can see the real gains with back to back testin

"MG B Cold Air box with back to back Dyno testing"

MGBSU BOI Air box1.jpg
MGBSU BOIAir Box2.jpg
MGBSU BOI Air box3dyno.jpg

440mmL,190mm wide, 105mm Depth nose 45mm OD 4"

MGB 4incinteral air filter.JPG
Rev cone1.JPG

MGB SU Carby 1-1/2 " or 1-3/4" set up standard engine with BOI Performance Cold air box only(A$570.00) Plus shipping

MG B kit with cold air box, (with out machining of base plate) for Carby's) Rev Cone Filter, Flang kit, 4" Ducting A$880.00 (plus shipping)

(Machining of carby base A$180.00)


"You can see the real gain between Standard factory MG B air filter to BOI Performance

Air Box and cold air intake on the BOI Dyno"

Datsun A1401.JPG
Datsun A1402.JPG

Datsun 1200 A14 Custom Air box twin Weber 40 DCOE on Redline manifold

with Webcom linkage LP1000


(Sample Nissan Stanza Rally car L20 engine)_

Cold Air Box Intake

WEBER (Dellorto) 4 cylinder 2 x DCOE

Air Box to suit twin Weber DCOE Aud $600.00

440mmL,190mm wide, 105mm Depth nose 45mm OD 4"


Left handed 6 Cyl Air Box

600mmL,190mm wide, 105mm Depth nose 45mm OD 4"

Air Box triple DCOE A$630.00

(Custom Right handed Air box to suit setup $680.00)

Cold Air box stright.JPG

Air box wil suit Left or Right handed setup

440mmL,190mm wide, 75mm Depth nose 45mm OD 4"

Air Box triple DCOE Aud $620.00

Cold Air Box Intake

WEBER (Dellorto) 6 cylinder for triple DCOE

6000mm L,190mm wide, 105mm Depthnose 45mm OD 4"

Air Box triple DCOE Aud $630.00

240-260 Air Box.jpg
air box 240Z.JPG

Special Nissan 240/260Z

Air Box triple DCOE Aud $630.00

Air Box 240-260 Graph.JPG

you can see the real gains with back to back testing

6000mm L,190mm wide, 105mm Depthnose 45mm OD 4"

Hemi Low res M301.jpg
Hemi Low res Mark 3 04.jpg

"New HEMI Mark 3 Cold air box"

Hemi cold Air Box 3.JPG
Hemi Cold Air Box4.JPG

We have just released a new HEMI Cold Air Box (Mk 3) for all 245 & 265 Hemi engines using 3 Weber 45 DCOE with 5" (127mm) Ducting, from Aud $780.00, plus option's

rev cone 5inc1.JPG
rev cone 5inc2.JPG

5" Air filter-Cone type (Internal to air duct) Aud $95.00

5inc (127mm) UNF custom (1).jpg
5inc (127mm) UNF custom (2).jpg
5inc (127mm) UNF custom (3).jpg
5Inc ducking.jpg

UNI Filter 5" (127mm) (OD 190mm, Depth 70mm)

Aud $135.00 5" (127mm) Ducting from Aud $65.00 per 500mm

Custom Cold Air Box Intake TR4 Twin Weber 45 DCOE


Custom to order Cold Air Box's,

we can build to your needs

Extra mod's from about additional Aud $180 !!

Picture 129.jpg
Picture 131.jpg

Custom Cold Air Box Intake with Split rear section to fit over tight enging bay with up 25mm ram tubes Toyota AE86 Sprinter 4AGE (1600)

( engine breather to Air Box for road use)

Twin Weber DCOE/Dellorto DHLA

as a kit, plus cost of modifications POA $


(Note we can also built special unit's to look after IBT's on Black top engines Modificatiob $POA


Opel GT custom air box built & shipped to the USA


We have just made our biggest ever Custom Cold Air box, with 6" Intake for a 245HEMI Touring Car Masters Car on triple Weber DCO 50's, $POA
